Mobile Energy Storage System
NOMAD CONDOR
Maximum Power. Fast Response.
2 MW1 MWh~20 minutes at 2,000 kW
Specifications
TECHNICAL DETAILS
Electrical Specifications
- Nameplate Energy
- 1,000 kWh DC (beginning of life); 870 kWh usable AC
- Rated Power
- 2,000 kW AC continuous at unity PF
- Discharge Time at Full Power
- ~20 minutes
- AC Voltage / Frequency
- 690 V · 50/60 Hz · 3-phase
- Rated AC Current
- ~1,675 A at 2,000 kW
- AC Switchgear
- Main AC breaker integrated in inverter (isolation transformer required)
- Operating Modes
- Grid-forming, grid-following, islanding, black start, generator support
- Frequency Regulation
- Supports grid frequency stabilization
- Power Quality
- Designed to IEEE 1547-2018
- Batteries
- Lithium Iron Phosphate (LFP, prismatic, 2C)
- Peak Aux Power Load
- 50 kW
- Sound
- 75 dBA @ 1 m
Dimensions & Weights
- Dimensions (without trailer)
- 20' × 8' × 9.5' (6.10 × 2.44 × 2.90 m)
- Dimensions (with trailer)
- 40' × 8' × 13' (12.19 × 2.44 × 3.96 m)
- Weight (without trailer)
- 50,000 lbs (22,700 kg)
- Weight (with trailer)
- 62,000 lbs (28,100 kg) est.
Environmental & Compliance
- Operating Temperature
- −30°F to 130°F (−34°C to 54°C); power derates above 113°F (45°C)
- Environmental System
- Integrated chiller & HVAC with temperature monitoring and electric heaters
Operational Capabilities
- Run Time
- ~20 minutes at full power; ~1.7 hours at 500 kW (scales with load)
- Deployment Time
- Fully operational within minutes of site arrival
- Fuel Savings (Hybrid Mode)
- Reduces generator fuel use; site-specific savings modeled by NOMAD
- Maintenance Reduction
- Fewer generator run-hours, extending service intervals and lifespan
- Emission Reduction
- Significant decrease in greenhouse gas emissions
Control and Monitoring
- Control Interface
- Touchscreen control panel with remote access capability HMI & SCADA with local & remote access
- Monitoring
- Real-time data on power usage, battery health, and environmental conditions
- Connectivity
- LTE and satellite communication options
- Fire Detection / Protection
- Gas, smoke, heat detection, FDC dry type sprinkler, NFPA 68, NFPA 69
Warranty and Support
- Standard Warranty
- 2-year limited warranty
- Extended Warranty
- Available upon request
- Support
- 24/7 technical support and on-site service options
Target Certifications
- Status
- Designed to meet; certification in process, complete prior to delivery
- North America
- UL 9540 (system), UL 9540A (fire test), UL 1973 (batteries) UL 1741 SB / IEEE 1547-2018 NFPA 855, NFPA 70 (NEC), NFPA 68 / 69
- CE Marking Directives
- LVD (2014/35/EU), EMC (2014/30/EU), Machinery (2006/42/EC) EU Battery Regulation (EU) 2023/1542
- Cell & Module Safety
- IEC 62619, IEC 62620, UN 38.3
- System Safety & Design
- IEC 63056, IEC 62933-5-2, IEC 62477-1
- Functional Safety & BMS
- IEC 61508 (SIL 2 / SIL 3)
- Grid Interconnection (EU)
- EN 50549-1 / EN 50549-2, RfG Country-specific (e.g., VDE-AR-N 4110, G99)
- Fire Testing
- IEC 62619 (thermal propagation), UL 9540A
- Environmental
- RoHS (2011/65/EU), REACH (EC 1907/2006)
Weights exclude transformer skid. Specifications reflect current cut sheets and are subject to change.
Features
BUILT FOR PERFORMANCE

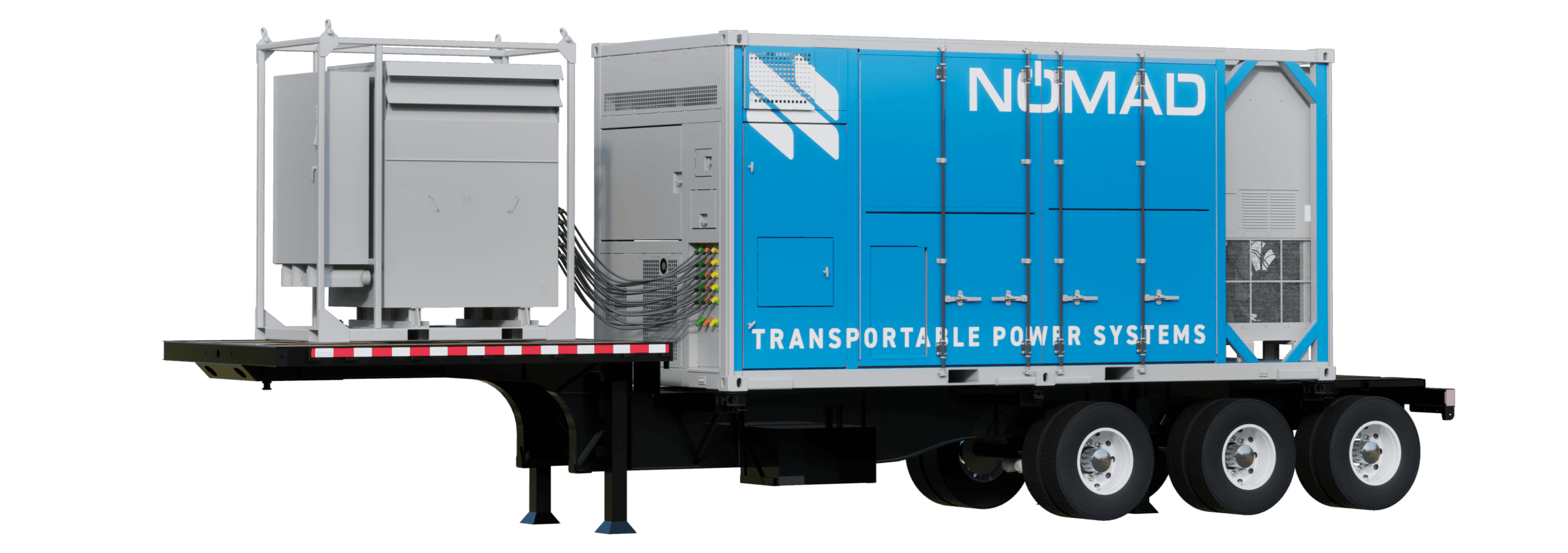

The NOMAD Condor is NOMAD's data center unit: 2 MW of power behind 1 MWh of LFP storage on one trailer. It can form a grid and black start a site, and it carries the fast load swings of GPU clusters and EV fast charging.
Trailer-mounted on a tri-axle chassis for heavy loads
Standard ISO corner blocks, forklift pockets and lifting hooks
Quick-connect power cables
Heavy-duty steel enclosure, IP55 rated and sound-insulated
Integrated chiller and HVAC cooling
Battery racks and modules serviceable from outside
Touchscreen control panel, HMI and SCADA with remote access
Gas, smoke and heat detection with FDC dry-type sprinkler
Transformer skid sold separately, in multiple block sizes
Grid-forming and black start capable
24/7 NOC monitoring
NETWORK OPERATIONS CENTER
Every NOMAD unit connects to our 24/7 Network Operations Center for remote monitoring, predictive maintenance, and real-time performance optimization. The WeatherSense system provides meteorological data for intelligent operation planning.
